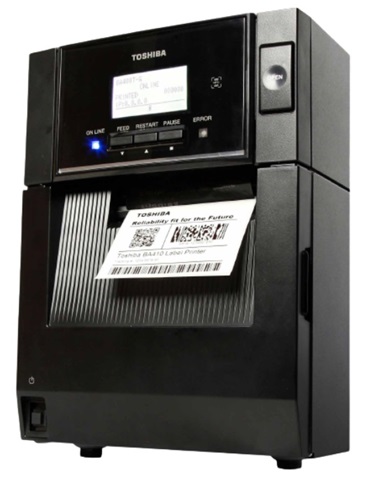

BA410T "Thermal/Thermal Transfer Label Printer"

Additional Information

B-852-TS22-QQ-R "Wide-Format Thermal/Thermal Transfer Label Printer."
B-452R "Thermal/Thermal Transfer Label Printer"
B-EX4T1-TS12-QM-R "Thermal/Thermal Transfer Label Printer"
TTP-345IE "Thermal/Thermal Transfer Label Printer"
B-EX4T2-HS12-QM-R "Thermal/Thermal Transfer Label Printer"
BA410T "Thermal/Thermal Transfer Label Printer"
B-EX4T3-HS12-QM-R "Thermal/Thermal Transfer Label Printer"
TX-610 "Thermal/Thermal Transfer Label Printer"

BA410T "Thermal/Thermal Transfer Label Printer"

Back to label machine home page

Ribbon and Label Sets

Add to Tracking

Product Number：

P0000BA410T0001

Quantity：

- +

Price：

$ 0NTD / Station

Inventory：

Shipping Fee：

Purchase on the main island over 5,000 NT dollars: Free shipping.
For purchases under 5,000 NT dollars on the main island: Shipping fee of 120 NT dollars.
Additional charges apply for remote areas, offshore islands, and international shipping.

Warranty：

Starting from the date of shipment from our company (inclusive), the barcode printer has a 12-month warranty (excluding the printhead).
Printhead warranty is for 3 months or 30 kilometers, whichever comes first.

Products：

Resolution: 305dpi
Print Width: 105.7mm
Print Speed: up to 152.4mm/second
Print Head: Flat Pressure Type

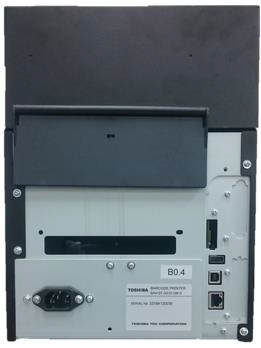

Transmission Interface: Centronics, built-in Ethernet, USB 2.0
Media Alignment: Centered
Ribbon Replacement Method: Snap-in
Appearance Structure: Metal casing with a transparent window design
Applicability: Suitable for high-volume medium-sized machines, with a sleek design suitable for various offices and harsh environments, providing high-quality printing results.

Specifications

High Functionality: High-speed printing and the latest design features, standard interfaces include USB 2.0/Parallel/built-in Ethernet.
High Applicability: Metal structure with a sleek design, including a transparent window, aesthetically pleasing housing design suitable for various offices and harsh environments, providing high-quality printing results.

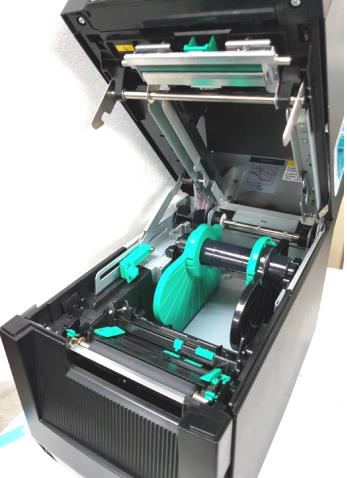

Easy Maintenance: Quick replacement of parts without the need for any tools.

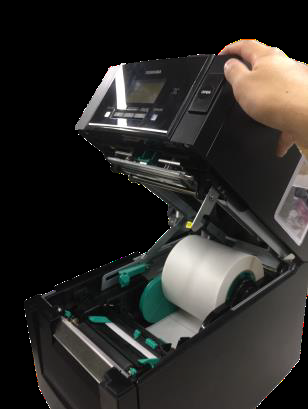

Convenient Operation: Top cover design for convenient and compact usage, saving operational space.
Print Modes: Thermal Transfer/Thermal Direct dual-use
Resolution: 305dpi
Print Width: 105.7mm
Print Speed: up to 152.4mm/second
Print Length: 13~997mm
Maximum Paper Width: 114mm
High Functionality: High-speed printing and the latest design features, standard interfaces include USB 2.0/Parallel/built-in Ethernet.
High Applicability: Metal structure with a sleek design, including a transparent window, aesthetically pleasing housing design suitable for various offices and harsh environments, providing high-quality printing results.
Easy Maintenance: Quick replacement of parts without the need for any tools.
Convenient Operation: Top cover design for convenient and compact usage, saving operational space.
Print Modes: Thermal Transfer/Thermal Direct dual-use
Resolution: 305dpi
Print Width: 105.7mm
Print Speed: up to 152.4mm/second
Print Length: 13~997mm
Maximum Paper Width: 114mm
Maximum Paper Outer Diameter: 20cm
Appearance Structure: Metal casing with a transparent window design
Dimensions: 238mm W x 339mm D x 332mm H
Net Weight: 15 Kg

Operating environment

Communication Interface: Centronics, built-in Ethernet, USB interface
Software: BarTender Ultralite latest version compatible with Windows 7 and above; Upgradeable to Basic/Professional or higher software (additional purchase required)
Dynamic Link Files: Windows Drivers 2000/XP/7 or above
Operating Temperature: +5℃ to +40 ℃; Relative Humidity: 25% to 85%
Electrical Specifications: 100V to 240V, 50/60Hz AC automatic switching power supply
Safety Certifications: FCC Class B, CE Class B, RCM, UL, cUL, TUV/Safety, CCC
Country of Manufacture: Indonesia

Paper/Printer Ribbon Specifications

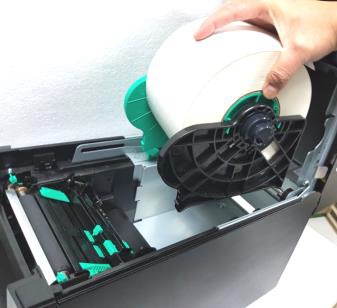

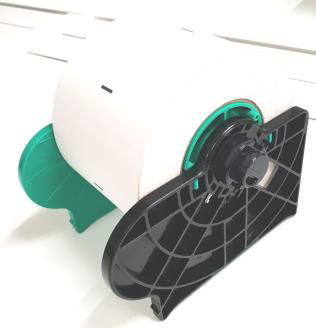

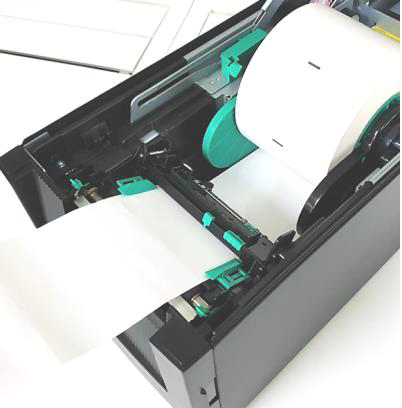

- Paper Types: Continuous paper, gap-sensing paper, black mark paper, hang tags, folded paper (external roll)
- Paper Width: 47mm to 114mm
- Maximum Paper Roll Capacity (Outer Diameter): 200mm
- Paper Roll Core: 76mm
- Label Gap: 3mm
- Ribbon Core Size: 25.4mm
- Ribbon Length: 300 to 450 meters
- Label Thickness: 0.055mm to 0.254mm
- Black Mark Height: 1.5mm to 3mm
- Minimum Label Height: 13mm
- Ribbon Specification: External Roll
- Label Packaging: Inner Roll
- Maximum Ribbon Width: 60mm to 118mm

Font/Graphic/Barcode Specifications

Through software control, it supports seven vector fonts, including Windows fonts and fonts like "華康" (Hua Kang).
Supports JPG and BMP black and white image formats (including customer logos).
Text, barcodes, and graphics can be oriented in four directions (0 degrees, 90 degrees, 180 degrees, 270 degrees) and freely scaled, resized, and rotated through the software.
The software supports all one-dimensional and two-dimensional barcodes. For details on supported barcode types, please refer to the BarTender functionality guide.

Applicable Industries

The industries listed include manufacturing, automotive and motorcycle parts, chemical industry, pharmaceuticals, textile industry, electronics industry, telecommunications industry, food industry, retail industry, transportation industry, government agencies, and more.

Accessories

Cutter
Peeling Module (or Label Peeler Module)
Internal Rewinder
