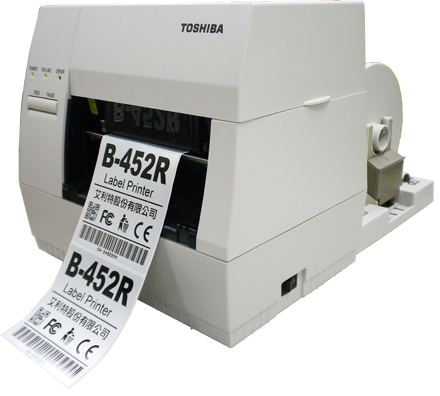

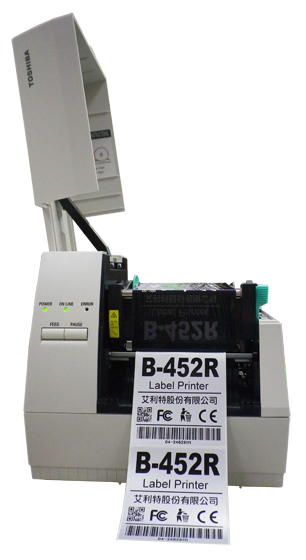

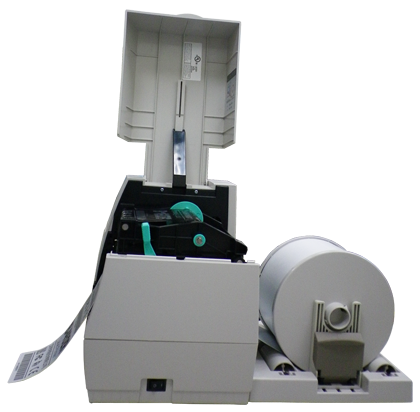

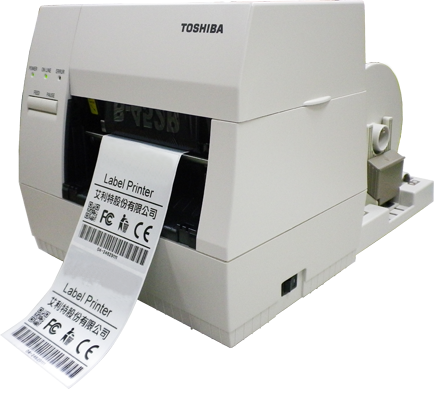

B-452R "Thermal/Thermal Transfer Label Printer"
Product Number:
- +
$ 0NTD / Station
Shipping Fee:
  • Purchase on the main island over 5,000 NT dollars: Free shipping.
  • For purchases under 5,000 NT dollars on the main island: Shipping fee of 120 NT dollars.
  • Additional charges apply for remote areas, offshore islands, and international shipping.
  • The barcode printer comes with a 12-month warranty from the date of shipment (excluding the printhead).
  • The printhead has a warranty of 3 months or 30 kilometers, whichever comes first, from the date of shipment.
  • Resolution: 305 dpi
  • Printing Width: 105.7 mm
  • Printing Speed: Up to 101.6 mm per second
  • Printhead Type: Flatbed
  • Communication Interfaces: Built-in Ethernet, USB 2.0
  • Media Alignment: Centered
  • Ribbon Replacement Method: Snap-in
  • Exterior Structure: Rugged plastic housing
  • Applicability: Medium-sized model suitable for a variety of label types, convenient for moderate-volume printing.

It is a stable and durable medium-sized industrial barcode printer that features a rugged plastic housing suitable for various working conditions. It offers easy operation, superior specifications, and comes with built-in 16MB DRAM/16MB Flash ROM memory.

● Printing Modes: Both Thermal Transfer and Direct Thermal

● Resolution: 305 dpi

● Printing Width: 105.7 mm

● Printing Speed: up to 101.6 mm per second

● Printing Length: 15 to 500 mm

● Maximum Paper Width: 114 mm

● Exterior Structure: Rugged plastic housing

● Dimensions: 270 mm W x 200 mm D x 245 mm H

● Weight: 4.7 kg

Operating environment
  • Communication Interfaces: Built-in Ethernet, USB 2.0, Centronics
  • Software: BarTender Ultralite, compatible with Windows 7 and later versions. Upgrade options available to Basic/Professional or higher level software (sold separately).
  • Driver Support: Windows Drivers for 2000/XP/7 and above
  • Operating Temperature: +5°C to +40°C
  • Relative Humidity: 25% to 85%
  • Electrical Specifications: 100V or 240V, 50/60Hz AC power supply
  • Safety Certification: UL, CSA, FCC, Taiwan EMI testing compliant
Paper/Printer Ribbon Specifications
  • Paper Type: For optimal printing quality, please use genuine consumables.
  • Paper Width: 25.4mm to 110mm
  • Maximum Paper Roll Capacity (Outer Diameter): 203mm
  • Paper Roll Core Diameter: 76mm
  • Label Gap: 3mm
  • Black Mark Height: 3mm
  • Ribbon Core Size: 25.4mm
  • Ribbon Length: 300 meters
  • Label Thickness: 0.1mm to 0.17mm
  • Minimum Label Height: 15mm
  • Ribbon Specification: External Roll
  • Label Packaging: Inner Roll
  • Maximum Ribbon Width: 60mm to 118mm
Font/Graphic/Barcode Specifications
  • Through software control, it supports seven types of vector fonts, including Windows fonts and fonts like "華康."
  • It can handle JPG and BMP black-and-white image formats, including customer logos.
  • Text, barcodes, and graphics can be oriented in four directions: 0 degrees, 90 degrees, 180 degrees, and 270 degrees. They can also be freely resized and rotated.
  • The software supports all one-dimensional and two-dimensional barcodes. (For information on supported barcode types, please refer to the BarTender documentation.)
Applicable Industries
  • Manufacturing Industry
  • Import/Export Business
  • Pet Industry
  • Electronics Industry
  • Pharmaceutical Industry
  • Gift Industry
  • Food Industry
  • Chemical Industry
